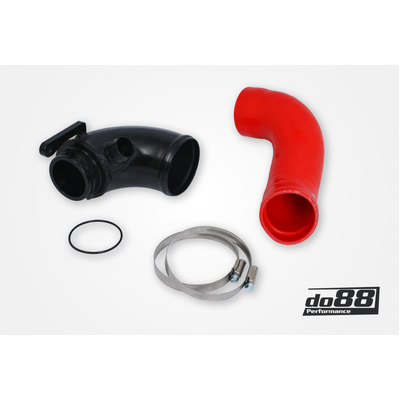

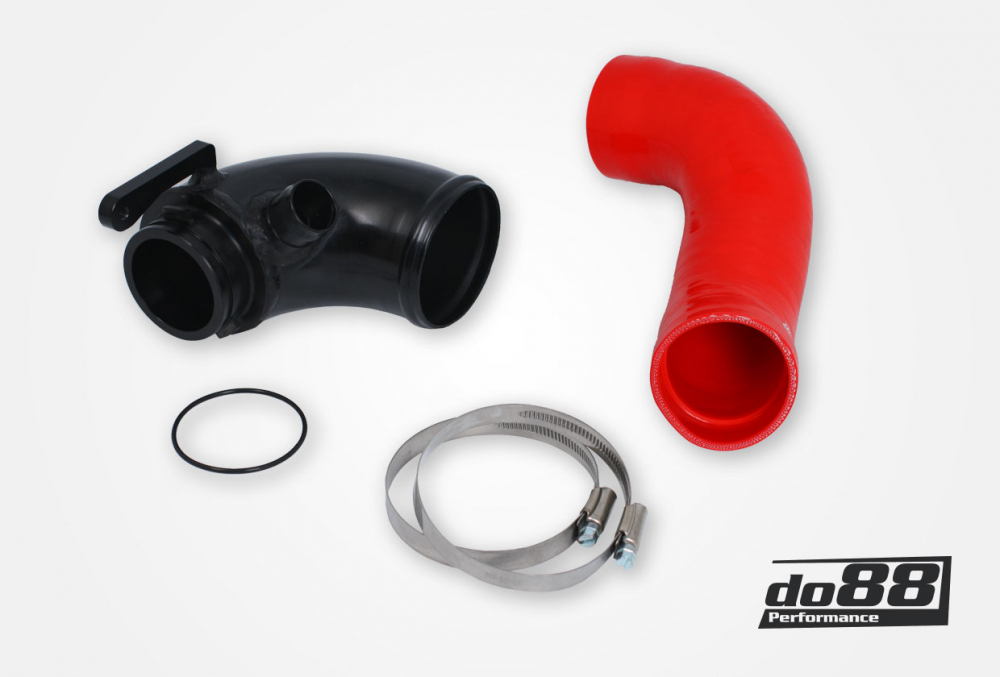

High performance turbo inlet, designed by do88. For easy drop-in-fitment in your Audi Seat Skoda VW 1.8 TSI / 2.0 TSI (MQB).

Significant advantages with do88 turbo inlet pipe (OEM comparison numbers):
- Larger diameter: 76mm (70 mm), results in 35% larger flow area!

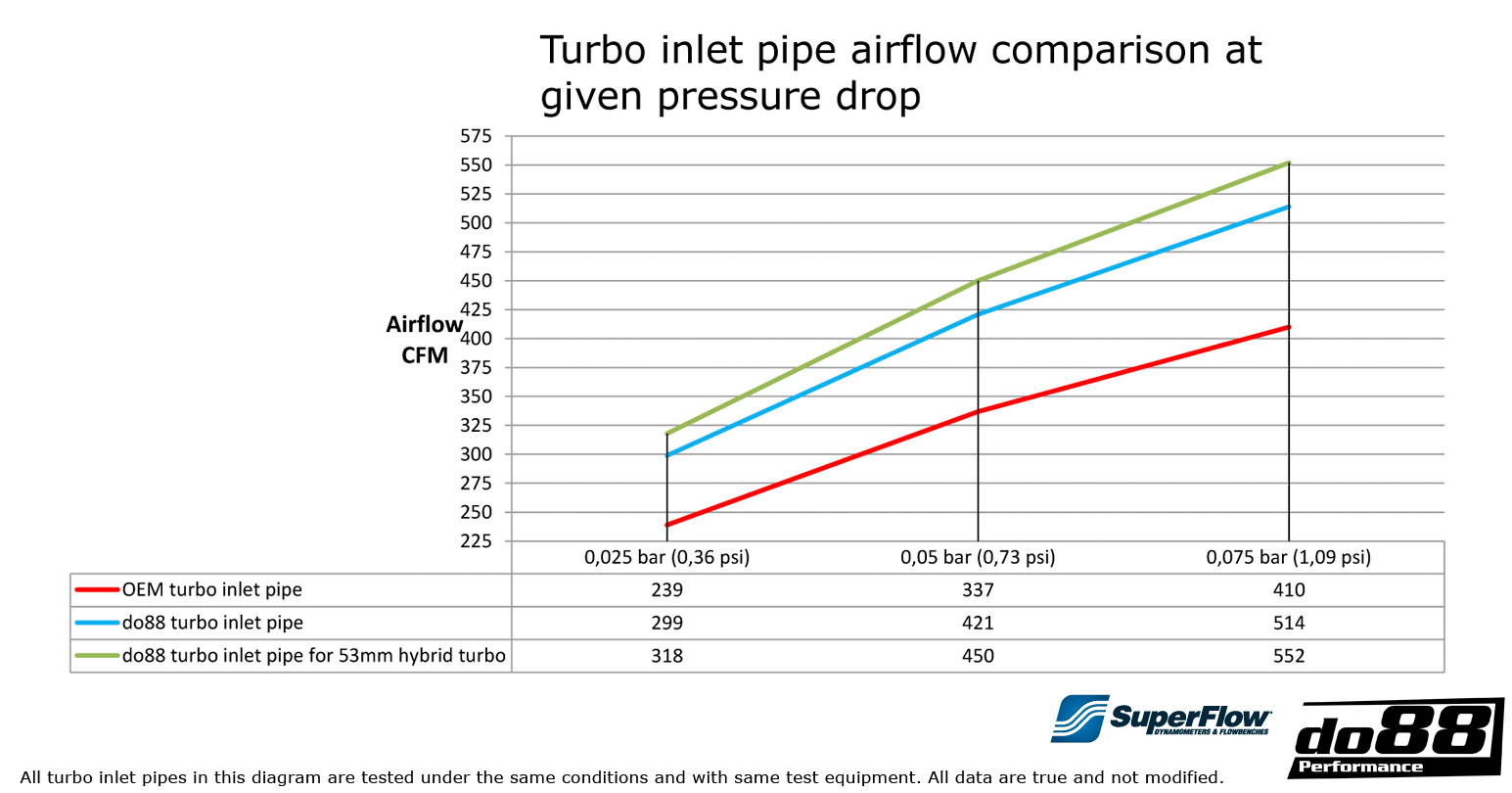

- Air flow at 75 mbar/1,09psi pressure drop, 514 CFM (410 CFM), do88 25 % higher flow!
- CNC machined turbo flange with flow optimized radius!

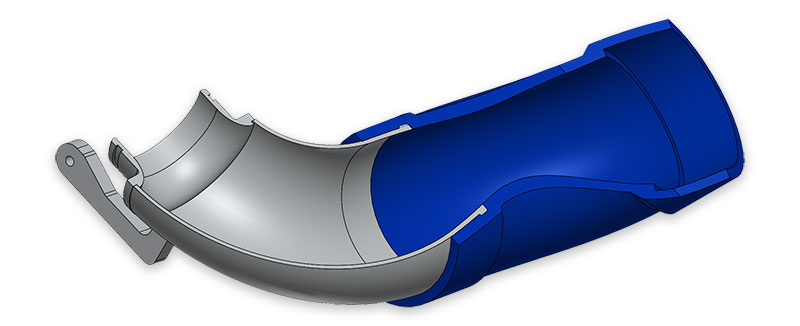

- Flow optimized silicone hose with stepped inside that match connections to reduce turbulence!
- Steel wire reinforced silicone hose for OEM or do88 air box lid.
- Available for both original turbocharger or hybrid turbocharges with 53mm inner diameter.
- Simple straight forward installation with clear installation instruction. (See installation instruction below for details.)

This turbo inlet pipe is designed for best possible air flow to the turbocharger. Better air flow gives better efficiency and more power!
do88 turbo inlet pipe is made of aluminum with CNC machined turbo flange, PCV port and bracket.




Always remember that the OEM turbo inlet pipe and hoses was designed for the power level the car was built for originally. A power increase may cause that the OEM pipe and hoses don’t have the performance you need. So already after engine software tune do88 turbo inlet pipe will give a performance increase over the OEM!

This product comes with everything necessary for an easy installation, without the need for cutting or in any way changing the car´s original shape. Installation hardware and mounting instructions are of course included.

Do take care of your engine. Choose do88.

Click here to read Installation instruction.
When you order this kit, there are three choices that needs to me made:

1. Hose color:
Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car.

2. Turbo:
Chose the type of turbocharger the inlet pipe should fit, OEM with 48,5mm inner diamter or hybrid with 53mm inner diamter.

3. Air filter:
Chose the type of air box the inlet pipe should fit. OEM or do88.


Fits:

VW Golf (MK7, MK7.5)
Model years: 2013-
Model: GTI, R, Clubsport, ED40, Golf, Sportwagen
Engine: 1.8 TSI, 2.0 TSI

VW Passat (3G)
Model years: 2015-
Engine: 1.8 / 2.0 TSI

VW Tiguan (MK2)
Model years: 2016-
Engine: 2.0 TSI

VW Arteon
Model years: 2017-
Engine: 2.0 TSI

VW Jetta GLI (MK7)
Model years: 2019-
Engine: 2.0 TSI

Audi A3 / S3 (8V)
Model years: 2012-
Engine: 1.8 TFSI, 2.0 TFSI

Audi TT / TTS (8S)
Model years: 2015-
Engine: 1.8 TFSI, 2.0 TFSI

SEAT León / Cupra (MK3)
Model years: 2013-
Engine: 1.8 TSI, 2.0 TSI

Skoda Octavia / VRS (MK3)
Model years: 2013-
Engine: 1.8 TSI, 2.0 TSI

Skoda Superb (B8)
Model years: 2015-
Engine: 1.8 TSI, 2.0 TSI


OEM-reference:


5Q0 129 654 P, 5Q0 129 654 AE, 5Q0 129 654 L, 5Q0 129 635 L, 5Q0 129 635 P,
5Q0 129 635 Q, 5Q0 129 634 P



SKU IR-130R-48-OEM
Brand do88
Performance Part y
Weight 14.0000kg

Be The First To Review This Product!

Help other EMS Carparts users shop smarter by writing reviews for products you have purchased.

Write a product review

*
*



More From This Category

Valeo Intercooler for Mercedes-Benz 906 SPRINTER DIE - 9065010201

Valeo Intercooler for Mercedes-Benz 906 SPRINTER DIE - 9065010201

In Stock

$606.99

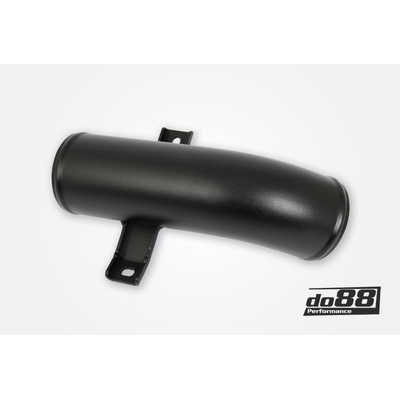

do88 Inlet pipe Resonator delete for Toyota Yaris GR  - IR-170S

do88 Inlet pipe Resonator delete for Toyota Yaris GR - IR-170S

In Stock

$294.99

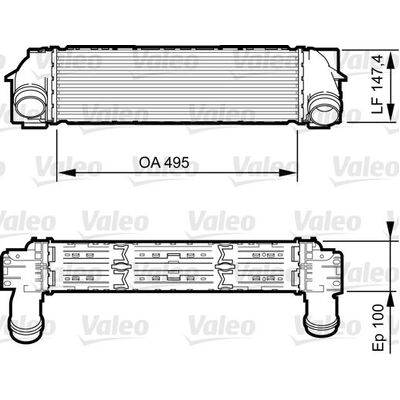

Valeo Intercooler for BMW F25 4 CYL - 818252
